|Place of Origin:||China|
|Certification:||ISO9001 / TS16949|
|Minimum Order Quantity:||10|
|Packaging Details:||YTM /Neutrail /Customized|
|Delivery Time:||5-30 work days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||50000 Pcs/ Month|
|Condition:||100% New||Warranty:||6 MONTHS|
|Application:||KUBOTA B2530 [D1105] 01.2008||Voltage:||12 V|
|Ampere:||40 A||Part No.:||125564A1、DAN2019、ALN9210NW、ALN9210UX、1623164011、1623164013、1624164012、1624164013、6643664014、301N21474Z|
40A Electric Engine Alternator,
16231-64013 Electric Engine Alternator,
Electric Engine Alternator 125564A1

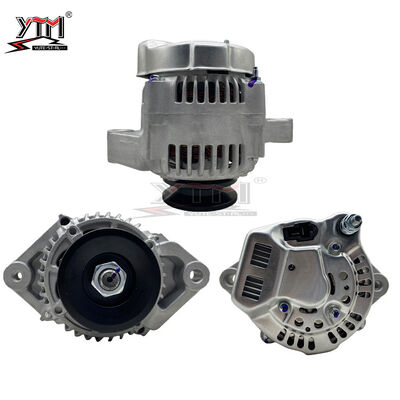

12V 40A Factory Electric Engine Alternator KUBOTA B2530 16231-64013 125564A1
|Item Name||12V 40A Factory Electric Engine Alternator KUBOTA B2530 16231-64013 125564A1|
|Data||12V / 40A / 1pk|
|Application 1||KUBOTA B2530 [D1105] 01.2008|
|Application 2||KUBOTA Engine [D722]|
|Application 3||KUBOTA F1900 [D722] 01.2008|
|Application 4||KUBOTA F2880 [D1305] 01.2008|
|Application 5||KUBOTA KX41-3V [D902] 01.2004|
Our products are 100% developed according to the original standard, its installation size and parts are all produced and processed according to OEM standard processing center equipment, so that all parts are exchanged with OEM original.
1.Grease: gear box and drive gear adopt German imported lubricating oil, military high and low temperature standard (-50°----230°).
2.Bearings: We all use domestic first-line brand humanism deep groove ball bearings, INA needle roller bearings imported from the United States.
3.Copper: The bare copper wire of stator coil and pure copper enameled wire of armature reach international OEM standard,high temperature resistant to 230°.
4.Steel: Stator casing fine drawing seamless steel tube,the drive gear adopts 20# steel cold chamber forging process.
5.Aluminum: All aluminum is made of international standard ADC12.
6.One-way gear: Songer system standard quality.
7.Relay: Taiwan Songer Imported with chip to prevent burning.
8.Generator core: all use silicon steel sheet effective magnetic field performance.
9.Enameled wire: all F grade 180° high temperature wire. (Xiandeng, Great Wall two major domestic manufacturers)
10.Insulation material: 350° high temperature resistance, inner fiber and outer rubber hose, insulating paper and Valeo unified parameter platform.
11.Rotor: claw pole and rigid ring, in order to improve the low speed performance to achieve technological innovation, brushless motor all add magnetic steel.
12.Electronic components: supplied by four major domestic manufacturers (Xuzhou Yunyi, Xuzhou Xiangyue, Ningbo Chewang, Shanghai Changbo).
13.Testing: 100% production testing, warehouse testing, factory testing, and each motor is tested according to OEM standard "DV" testing equipment (testing equipment provided by Canada "DV" testing platform company in North America).
Yute Motor(Guangdong) Mechanical parts Co., Ltd., established in 2008, focus on the production of Motor Starters and Alternators. With more than 20,000 square meters of wide production workshop parts and equipped with a number of advanced equipment such as high-precision CNC machining centers and CNC lathes, automatic rotor spot welding machines, CNC milling machines, on-site foaming machines, modern automatic production lines, and automatic insulation treatment producers, the company’s annual output value reaches more than 200,000 units. After 14 years unremitting efforts, the company has become a pioneer in the construction machinery industry, and our products have successively passed the certifications of IS09001:2000, QS-9000, and ISO/TS16949. Up to now, the motor series produced by Yute has reached the international advanced level. Besides, the motor sales volume of construction machinery, such as excavators and heavy trucks are in the lead all the year round.
