12V 65A HYUNDAI Sonata Alternator MITSUBISHI generator Lester 12303 A003T03492 A003T03493 A003T03493ZC

Basic Information
Place of Origin: China
Brand Name: YUTE
Certification: ISO9001 / TS16949
Model Number: 12303
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: YTM /Neutrail /Customized
Delivery Time: 5-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 Pcs/ Month
Detail Information
Application: MITSUBISHI Warranty: 1 Year
Condition: 100% New

Product Description

Our products are 100% developed according to the original standard, its installation size and parts are all produced and processed according to OEM standard processing center equipment, so that all parts are exchanged with OEM original.

1.Grease: gear box and drive gear adopt German imported lubricating oil, military high and low temperature standard (-50°----230°).

2.Bearings: We all use domestic first-line brand humanism deep groove ball bearings, INA needle roller bearings imported from the United States.

3.Copper: The bare copper wire of stator coil and pure copper enameled wire of armature reach international OEM standard,high temperature resistant to 230°.

4.Steel: Stator casing fine drawing seamless steel tube,the drive gear adopts 20# steel cold chamber forging process.

5.Aluminum: All aluminum is made of international standard ADC12

6.One-way gear: Songer system standard quality

7.Relay: Taiwan Songer Imported with chip to prevent burning.

8.Generator core: all use silicon steel sheet effective magnetic field performance

9.Enameled wire: all F grade 180° high temperature wire. (Xiandeng, Great Wall two major domestic manufacturers)

10.Insulation material: 350° high temperature resistance, inner fiber and outer rubber hose, insulating paper and Valeo unified parameter platform.

11.Rotor: claw pole and rigid ring, in order to improve the low speed performance to achieve technological innovation, brushless motor all add magnetic steel.

12.Electronic components: supplied by four major domestic manufacturers (Xuzhou Yunyi, Xuzhou Xiangyue, Ningbo Chewang, Shanghai Changbo)

13.Testing: 100% production testing, warehouse testing, factory testing, and each motor is tested according to OEM standard "DV" testing equipment (testing equipment provided by Canada "DV" testing platform company in North America).



Product Description:



12V 65A HYUNDAI Sonata Alternator MITSUBISHI generator Lester 12303  A003T03492 A003T03493 A003T03493ZC

Voltage 12
Amps:
65
Pulley:
4



OE NO:

Bosch 0986042901
Cargo 110802
CAS CAL35160, CAL35160AS, CAL35160ES, CAL35160GS, CAL35160OS, CAL35160RS
Delco DA4256, DRA3145N, DRA3146
HC-PARTS JA664IR
HELLA 8EL726379001
KRAUF ALM0664BS, ALM0664LK, ALM0664MQ, ALM0664YX
Messmer 210375
Mitsubishi A003T03391, A003T03392, A003T03392ZC, A003T03393, A003T03393ZC, A003T03492, A003T03493, A003T03493ZC, A003T03499, A3T03471, A3T03492, A3T03493, MD133513, MD136838, MD169683, MD169683D
Unipoint ALT3056, ALT3056A
Valeo 436504
WPS 13249N, 13271N
ZAUFER 301N21965Z

APPLICATION:



HYUNDAI Sonata III 1.8i Y3 [G4CM] 1993-1998 MITSUBISHI Eclipse 2.0 MITSUBISHI Expo 2.4 MITSUBISHI FG-10 [4G33] PLYMOUTH Colt 1.6 PLYMOUTH Colt 2.4 PLYMOUTH Laser 2.0 MITSUBISHI FG-14 [4G33] MITSUBISHI FG-15 [4G33] MITSUBISHI FG-15BG [4G33] MITSUBISHI FG-15BGLP [4G33] MITSUBISHI FG-15BLP [4G33] MITSUBISHI FG-15BLPS [4G33] MITSUBISHI FG-15G [4G33] MITSUBISHI FG-15GLP [4G33] MITSUBISHI FG-15GLPS [4G33] MITSUBISHI FG-15T [4G33] MITSUBISHI FG-18BG [4G33] MITSUBISHI FG-18BGLP [4G33] MITSUBISHI FG-18BLP [4G33] MITSUBISHI FG-18BLPS [4G33] MITSUBISHI FG-18G [4G33] MITSUBISHI FG-18GS [4G33] MITSUBISHI FG-18LP [4G33] MITSUBISHI FG-18LPS [4G33] MITSUBISHI FG-18T [4G33] MITSUBISHI FG-20 [4G52] MITSUBISHI FG-20 [AG64] MITSUBISHI FG-20BG [4G52] MITSUBISHI FG-20BG [AG64] MITSUBISHI FG-20BGHP [4G52] MITSUBISHI FG-20BGHP [AG64] MITSUBISHI FG-20BGLP [4G52] MITSUBISHI FG-20BGLP [AG64] MITSUBISHI FG-20BGLPHP [4G52] MITSUBISHI FG-20BGLPHP [AG64] MITSUBISHI FG-20BGS [4G52] MITSUBISHI FG-20BGS [AG64] MITSUBISHI FG-20BLP [4G52] MITSUBISHI FG-20BLP [AG64] MITSUBISHI FG-20BLPHP [4G52] MITSUBISHI FG-20BLPHP [AG64] MITSUBISHI FG-20BLPS [4G52] MITSUBISHI FG-20BLPS [AG64] MITSUBISHI FG-20G [4G52] MITSUBISHI FG-20G [AG64] MITSUBISHI FG-20GS [4G52] MITSUBISHI FG-20GS [AG64] MITSUBISHI FG-20HP [4G52] MITSUBISHI FG-20HP [AG64] MITSUBISHI FG-20LP [4G52] MITSUBISHI FG-20LP [AG64] MITSUBISHI FG-20LPS [4G52] MITSUBISHI FG-20LPS [AG64] MITSUBISHI FG-20T [4G52] MITSUBISHI FG-20T [AG64] MITSUBISHI FG-25 [4G52] MITSUBISHI FG-25 [AG64] MITSUBISHI FG-25BG [4G52] MITSUBISHI FG-25BG [AG64] MITSUBISHI FG-25BGHP [4G52] MITSUBISHI FG-25BGHP [AG64] MITSUBISHI FG-25BGLP [4G52] MITSUBISHI FG-25BGLP [AG64] MITSUBISHI FG-25BGLPHP [4G52] MITSUBISHI FG-25BGLPHP [AG64] MITSUBISHI FG-25BGS [4G52] MITSUBISHI FG-25BGS [AG64] MITSUBISHI FG-25BLP [4G52] MITSUBISHI FG-25BLP [AG64] MITSUBISHI FG-25BLPHP [4G52] MITSUBISHI FG-25BLPHP [AG64] MITSUBISHI FG-25BLPS [4G52] MITSUBISHI FG-25BLPS [AG64] MITSUBISHI FG-25BLPSHP [4G52] MITSUBISHI FG-25BLPSHP [AG64] MITSUBISHI FG-25G [4G52] MITSUBISHI FG-25G [AG64] MITSUBISHI FG-25GLP [4G52] MITSUBISHI FG-25GLP [AG64] MITSUBISHI FG-25GS [4G52] MITSUBISHI FG-25GS [AG64] MITSUBISHI FG-25HP [4G52] MITSUBISHI FG-25HP [AG64] MITSUBISHI FG-25LP [4G52] MITSUBISHI FG-25LP [AG64] MITSUBISHI FG-25LPS [4G52] MITSUBISHI FG-25LPS [AG64] MITSUBISHI FG-25T [4G52] MITSUBISHI FG-25T [AG64] MITSUBISHI FG-30 [AG54] MITSUBISHI FG-30 [AG64] MITSUBISHI FG-30BG [AG54] MITSUBISHI FG-30BG [AG64] MITSUBISHI FG-30BGLP [AG54] MITSUBISHI FG-30BGLP [AG64] MITSUBISHI FG-30BGS [AG54] MITSUBISHI FG-30BGS [AG64] MITSUBISHI FG-30BLP [AG54] MITSUBISHI FG-30BLP [AG64] MITSUBISHI FG-30BLPS [AG54] MITSUBISHI FG-30BLPS [AG64] MITSUBISHI FG-30G [AG54] MITSUBISHI FG-30G [AG64] MITSUBISHI FG-30GLP [AG54] MITSUBISHI FG-30GLP [AG64] MITSUBISHI FG-30GS [AG54] MITSUBISHI FG-30GS [AG64] MITSUBISHI FG-30LP [AG54] MITSUBISHI FG-30LP [AG64] MITSUBISHI FG-30LPS [AG54] MITSUBISHI FG-30LPS [AG64] MITSUBISHI FG-30T [AG54] MITSUBISHI FG-30T [AG64] MITSUBISHI FG-35 [4G54] MITSUBISHI FG-35A [4G54] MITSUBISHI FG-35ABG [4G54] MITSUBISHI FG-35ABGLP [4G54] MITSUBISHI FG-35ABLP [4G54] MITSUBISHI FG-35AG [4G54] MITSUBISHI FG-35ALP [4G54] MITSUBISHI FG-35ALPS [4G54] MITSUBISHI FG-35AT [4G54] MITSUBISHI FG-35G [4G54] MITSUBISHI FG-35G2 [4G54] MITSUBISHI FG-35LP [4G54] MITSUBISHI FG-35LP2 [4G54] MITSUBISHI FG-35LPS [4G54] MITSUBISHI FGC-10 [4G33] MITSUBISHI FGC-10G [4G33] MITSUBISHI FGC-10GS [4G33] MITSUBISHI FGC-10LP [4G33] MITSUBISHI FGC-10LPS [4G33] MITSUBISHI FGC-15 [4G33] MITSUBISHI FGC-15BG [4G33] MITSUBISHI FGC-15BGLP [4G33] MITSUBISHI FGC-15BGS [4G33] MITSUBISHI FGC-15BLP [4G33] MITSUBISHI FGC-15BLPS [4G33] MITSUBISHI FGC-15G [4G33] MITSUBISHI FGC-15GLP [4G33] MITSUBISHI FGC-15GS [4G33] MITSUBISHI FGC-15LP [4G33] MITSUBISHI FGC-15LPS [4G33] MITSUBISHI FGC-15TLP [4G33] MITSUBISHI FGC-18 [4G33] MITSUBISHI FGC-18BG [4G33] MITSUBISHI FGC-18BGLP [4G33] MITSUBISHI FGC-18BLP [4G33] MITSUBISHI FGC-18BLPS [4G33] MITSUBISHI FGC-20 [4G52] MITSUBISHI FGC-20B [4G52] MITSUBISHI FGC-20BG [4G52] MITSUBISHI FGC-20BGHP [4G52] MITSUBISHI FGC-20BGLP [4G52] MITSUBISHI FGC-20BGLPHP [4G52] MITSUBISHI FGC-20BLP [4G52] MITSUBISHI FGC-20BLPHP [4G52] MITSUBISHI FGC-20BLPS [4G52] MITSUBISHI FGC-20BLPSHP [4G52] MITSUBISHI FGC-20GLP [4G52] MITSUBISHI FGC-20HP [4G52] MITSUBISHI FGC-20LP [4G52] MITSUBISHI FGC-20LPS [4G52] MITSUBISHI FGC-20TLP [4G52] MITSUBISHI FGC-25 [4G52] MITSUBISHI FGC-25BG [4G52] MITSUBISHI FGC-25BGHP [4G52] MITSUBISHI FGC-25BGLP [4G52] MITSUBISHI FGC-25BGLPHP [4G52] MITSUBISHI FGC-25BGS [4G52] MITSUBISHI FGC-25BLP [4G52] MITSUBISHI FGC-25BLPHP [4G52] MITSUBISHI FGC-25BLPS [4G52] MITSUBISHI FGC-25BLPSHP [4G52] MITSUBISHI FGC-25G [4G52] MITSUBISHI FGC-25GLP [4G52] MITSUBISHI FGC-25GS [4G52] MITSUBISHI FGC-25HP [4G52] MITSUBISHI FGC-25LP [4G52] MITSUBISHI FGC-25LPS [4G52] MITSUBISHI FGC-25T [4G52] MITSUBISHI FGC-25TLP [4G52] MITSUBISHI FGC-25TLP [AG64] MITSUBISHI FGC-30 [AG54] MITSUBISHI FGC-30 [AG64] MITSUBISHI FGC-30BG [AG54] MITSUBISHI FGC-30BG [AG64] MITSUBISHI FGC-30BGLP [AG54] MITSUBISHI FGC-30BGLP [AG64] MITSUBISHI FGC-30BLP [AG54] MITSUBISHI FGC-30BLP [AG64] MITSUBISHI FGC-30BLPS [AG54] MITSUBISHI FGC-30BLPS [AG64] MITSUBISHI FGC-30G [AG54] MITSUBISHI FGC-30G [AG64] MITSUBISHI FGC-30GLP [AG54] MITSUBISHI FGC-30GLP [AG64] MITSUBISHI FGC-30GS [AG54] MITSUBISHI FGC-30GS [AG64] MITSUBISHI FGC-30LP [AG54] MITSUBISHI FGC-30LP [AG64] MITSUBISHI FGC-30LPS [AG54] MITSUBISHI FGC-30LPS [AG64] MITSUBISHI FGC-30T [AG54] MITSUBISHI FGC-30T [AG64] MITSUBISHI FGC-30TLP [AG54] MITSUBISHI FGC-30TLP [AG64] MITSUBISHI KFG-18 [4G33] MITSUBISHI KFG-20 [4G52] MITSUBISHI KFG-20 [AG64] MITSUBISHI Mirage 1.6 CATERPILLAR GC15 [4G63] 01.1992-12.1997 CATERPILLAR GC18 [4G63] 01.1992-12.1997 CATERPILLAR GC20 [4G63] 01.1992-12.1997 CATERPILLAR GC25 [4G63] 01.1992-12.1997 CATERPILLAR GC25 [4G64] 01.1992-12.1997 CATERPILLAR GC30 [4G64] 01.1992-12.1997 CATERPILLAR GP15 [4G63] 01.1994-12.1997 CLARK CGC20 [4G64] 01.1995-12.2000 CLARK CGC25 [4G64] 01.1995-12.2000 CLARK CGC30 [4G64] 01.1995-12.2000 CLARK CGC32 [4G64] 01.1995-12.2000 CLARK CGP20 [4G64] 01.1995-12.2000 CLARK CGP25 [4G64] 01.1995-12.2000 CLARK CGP30 [4G64] 01.1995-12.2000 DODGE Colt 1.6L DODGE Colt 2.4L EAGLE Summit 1.6 EAGLE Summit 2.4 EAGLE Talon 2.0

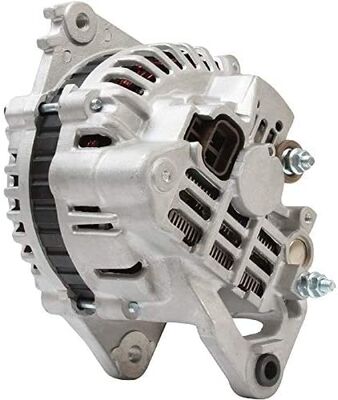

Product Image


12V 65A HYUNDAI Sonata Alternator MITSUBISHI generator Lester 12303  A003T03492 A003T03493 A003T03493ZC 0







Company introduction:


 Yute Motor(Guangdong) Mechanical parts Co., Ltd., established in 2008, focus on the production of Motor Starters and Alternators. With more than 20,000 square meters of wide production workshop parts and equipped with a number of advanced equipment such as high-precision CNC machining centers and CNC lathes, automatic rotor spot welding machines, CNC milling machines, on-site foaming machines, modern automatic production lines, and automatic insulation treatment producers, the company’s annual output value reaches more than 200,000 units. After 14 years unremitting efforts, the company has become a pioneer in the construction machinery industry, and our products have successively passed the certifications of IS09001:2000, QS-9000, and ISO/TS16949. Up to now, the motor series produced by Yute has reached the international advanced level. Besides, the motor sales volume of construction machinery, such as excavators and heavy trucks are in the lead all the year round.
12V 65A HYUNDAI Sonata Alternator MITSUBISHI generator Lester 12303  A003T03492 A003T03493 A003T03493ZC 1
12V 65A HYUNDAI Sonata Alternator MITSUBISHI generator Lester 12303  A003T03492 A003T03493 A003T03493ZC 2
12V 65A HYUNDAI Sonata Alternator MITSUBISHI generator Lester 12303  A003T03492 A003T03493 A003T03493ZC 312V 65A HYUNDAI Sonata Alternator MITSUBISHI generator Lester 12303  A003T03492 A003T03493 A003T03493ZC 4
12V 65A HYUNDAI Sonata Alternator MITSUBISHI generator Lester 12303  A003T03492 A003T03493 A003T03493ZC 512V 65A HYUNDAI Sonata Alternator MITSUBISHI generator Lester 12303  A003T03492 A003T03493 A003T03493ZC 6
12V 65A HYUNDAI Sonata Alternator MITSUBISHI generator Lester 12303  A003T03492 A003T03493 A003T03493ZC 712V 65A HYUNDAI Sonata Alternator MITSUBISHI generator Lester 12303  A003T03492 A003T03493 A003T03493ZC 8
12V 65A HYUNDAI Sonata Alternator MITSUBISHI generator Lester 12303  A003T03492 A003T03493 A003T03493ZC 9
