12V 130A Alternator for HONDA Pilot Lester 11573 104210-1240 31100-RV0-A01 31100-RV0-A01RM

Basic Information
Place of Origin: China
Brand Name: YUTE
Model Number: 11573
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: YTM /Neutrail /Customized
Delivery Time: 5-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 Pcs/ Month
Detail Information
Appliion: HONDA Pilot Warranty: 1 Year
Condition: 100% New

Product Description

Our products are 100% developed according to the original standard, its installation size and parts are all produced and processed according to OEM standard processing center equipment, so that all parts are exchanged with OEM original.

1.Grease: gear box and drive gear adopt German imported lubriing oil, military high and low temperature standard (-50°----230°).

2.Bearings: We all use domestic first-line brand humanism deep groove ball bearings, INA needle roller bearings imported from the United States.

3.Copper: The bare copper wire of stator coil and pure copper enameled wire of armature reach international OEM standard,high temperature resistant to 230°.

4.Steel: Stator casing fine drawing seamless steel tube,the drive gear adopts 20# steel cold chamber forging process.

5.Aluminum: All aluminum is made of international standard ADC12

6.One-way gear: Songer system standard quality

7.Relay: Taiwan Songer Imported with chip to prevent burning.

8.Generator core: all use silicon steel sheet effective magnetic field performance

9.Enameled wire: all F grade 180° high temperature wire. (Xiandeng, Great Wall two major domestic manufacturers)

10.Insulation material: 350° high temperature resistance, inner fiber and outer rubber hose, insulating paper and Valeo unified parameter platform.

11.Rotor: claw pole and rigid ring, in order to improve the low speed performance to achieve technological innovation, brushless motor all add magnetic steel.

12.Electronic components: supplied by four major domestic manufacturers (Xuzhou Yunyi, Xuzhou Xiangyue, Ningbo Chewang, Shanghai Changbo)

13.Testing: 100% production testing, warehouse testing, factory testing, and each motor is tested according to OEM standard "DV" testing equipment (testing equipment provided by Canada "DV" testing platform company in North America).



Product Description:



12V 130A  Alternator for HONDA Pilot Lester 11573 104210-1240 31100-RV0-A01 31100-RV0-A01RM

Voltage 12
Amps:
130
Pulley:
6



OE NO:

HONDA 31100-RV0-A01
HONDA 31100-RV0-A01RM
HONDA CSJ24
HONDA 06311-RV0-505 RM



REF NO:



BOSCH AL1315X
BOSCH 0 986 CR6 237
DENSO 104210-1240



AS A6324
Bosch 0986CR6237
Denso 1042101240, 1042101600, 1042118520
Honda 31100R70A11, 31100RV0A01, 31100RV0A01RM, 31100RV0A11, CSJ24
KRAUF ALN7240AN, ALN7240GB, ALN7240US, ALN7240ZD, ALN8240US, ALN8240ZD
WPS 11573N, 11600N
ZAUFER 301N20816Z


APPLIION:



Honda Pilot V6-3.5 2011-2015 HONDA Odyssey 3.5 01.2011-12.2013 HONDA Pilot 3.5 01.2012-12.2015 HONDA Ridgeline 3.5 01.2012-12.2014 HONDA ODYSSEY 3.5L 2013 HONDA ODYSSEY 3.5L 2012 HONDA ODYSSEY 3.5L 2011 HONDA PILOT 3.5L 2012 HONDA PILOT 3.5L 2014 HONDA PILOT 3.5L 2015 HONDA PILOT 3.5L 2013 HONDA RIDGELINE 3.5L 2012 HONDA RIDGELINE 3.5L 2014 HONDA RIDGELINE 3.5L 2013 HONDA Accord 3.5L 2011-12 HONDA Crosstour 3.5L 2011-12



Product Image

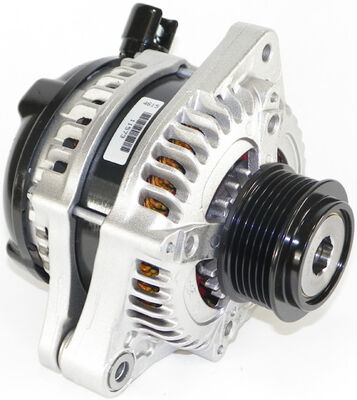

12V 130A Alternator for HONDA Pilot Lester 11573 104210-1240 31100-RV0-A01 31100-RV0-A01RM 0







Company introduction:


 Yute Motor(Guangdong) Mechanical parts Co., Ltd., established in 2008, focus on the production of Motor Starters and Alternators. With more than 20,000 square meters of wide production workshop parts and equipped with a number of advanced equipment such as high-precision CNC machining centers and CNC lathes, automatic rotor spot welding machines, CNC milling machines, on-site foaming machines, modern automatic production lines, and automatic insulation treatment producers, the company’s annual output value reaches more than 200,000 units. After 14 years unremitting efforts, the company has become a pioneer in the construction machinery industry, and our products have successively passed the certifiions of IS09001:2000, QS-9000, and ISO/TS16949. Up to now, the motor series produced by Yute has reached the international advanced level. Besides, the motor sales volume of construction machinery, such as excavators and heavy trucks are in the lead all the year round.
12V 130A Alternator for HONDA Pilot Lester 11573 104210-1240 31100-RV0-A01 31100-RV0-A01RM 1
12V 130A Alternator for HONDA Pilot Lester 11573 104210-1240 31100-RV0-A01 31100-RV0-A01RM 2
12V 130A Alternator for HONDA Pilot Lester 11573 104210-1240 31100-RV0-A01 31100-RV0-A01RM 312V 130A Alternator for HONDA Pilot Lester 11573 104210-1240 31100-RV0-A01 31100-RV0-A01RM 4
12V 130A Alternator for HONDA Pilot Lester 11573 104210-1240 31100-RV0-A01 31100-RV0-A01RM 512V 130A Alternator for HONDA Pilot Lester 11573 104210-1240 31100-RV0-A01 31100-RV0-A01RM 6
12V 130A Alternator for HONDA Pilot Lester 11573 104210-1240 31100-RV0-A01 31100-RV0-A01RM 712V 130A Alternator for HONDA Pilot Lester 11573 104210-1240 31100-RV0-A01 31100-RV0-A01RM 8
12V 130A Alternator for HONDA Pilot Lester 11573 104210-1240 31100-RV0-A01 31100-RV0-A01RM 9
