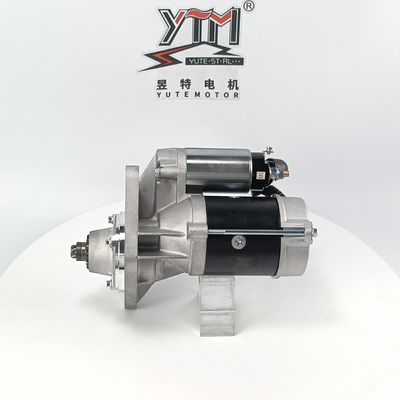

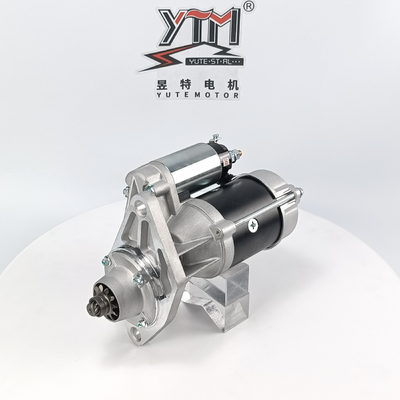

Name: 24V 5.5KW 11T Starter QDJ2431H For Isuzu 4HG1 4HK1 Engine Isuzu 700P Truck OE 5871009151 S25163
Brand: Yute Motor(Guangzhou) Mechanical parts Co., Ltd.
SKU: QDJ2431H
Price: 92.00 USD
Availability: InStock

Home Products Engine Starter Motor

24V 5.5KW 11T Starter QDJ2431H For Isuzu 4HG1 4HK1 Engine Isuzu 700P Truck OE 5871009151 S25163

Product Details:

Place of Origin:	China
Brand Name:	YTM
Model Number:	QDJ2431H

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	YTM /Neutrail /Customized
Delivery Time:	5-30 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	50000 Pcs/ Month

Contact Now

Detailed Product Description

Condition:	100% Brand New	Warranty:	12 Months
Lead Time:	15‑30 Working Days	Voltage:	24V
Power:	5.5KW	Teeth:	11T
Fit Engine:	Isuzu 4HG1 / 4HK1 Engine	Application:	Isuzu 700P Truck
OEM Number:	5871009151, 5876102820	P/N Number:	S25163, S25163A
WAI/Lester NO:	STH3675, 18960N, S2022	Product Model:	Hitachi / Mitsubishi Style
Product Series:	2431 Series	Type:	Truck Starter Motor
Brand:	YTM
Highlight:	24V starter motor for Isuzu 4HG1 engine , 5.5KW starter motor for Isuzu 700P truck , OE 5871009151 Isuzu starter motor with warranty

24V 5.5KW 11T Starter QDJ2431H for Isuzu 4HG1 4HK1 Engine

High-quality brand-new truck starter QDJ2431H, designed for Isuzu 4HG1 / 4HK1 engine, fits Isuzu 700P truck. Strict factory testing ensures reliable starting performance for heavy-duty vehicles.

Key Features

Strong cranking power for harsh working environments
Durable copper winding and anti-wear gear construction
100% full-function tested before shipment
Direct replacement with simple installation
Complete OEM and cross-reference part numbers included

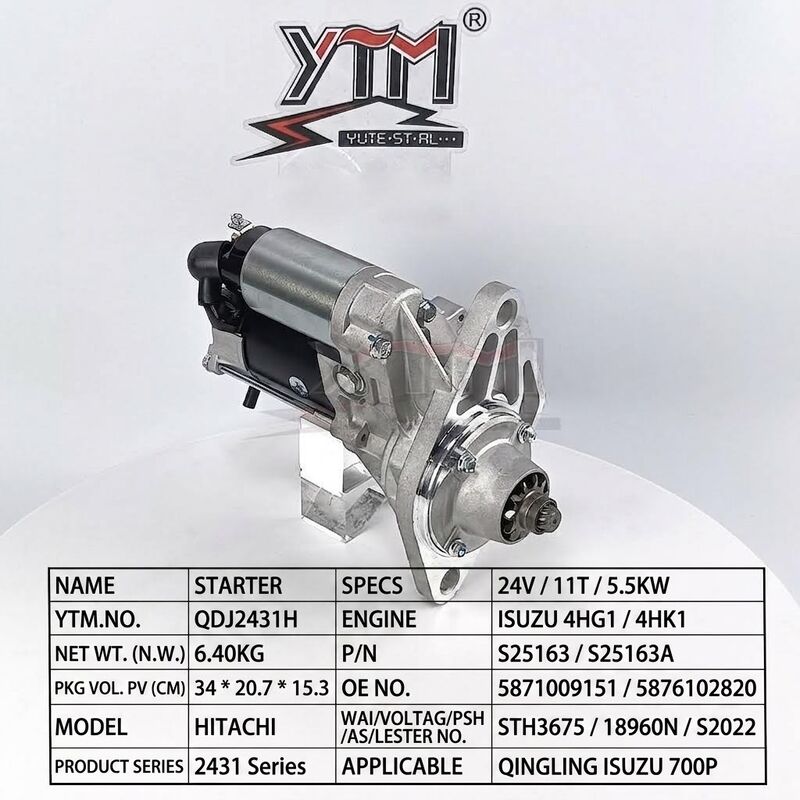

Technical Specifications

Model	QDJ2431H
Voltage	24V
Power	5.5KW
Drive Teeth	11T
Engine	Isuzu 4HG1, 4HK1
Application	Isuzu 700P Truck
OE Numbers	5871009151, 5876102820
Part Numbers	S25163, S25163A
WAI Numbers	STH3675, 18960N, S2022
Net Weight	6.40KG
Package Size	34×20.7×15.3 CM
Place of Origin	China

Premium Manufacturing Standards

Our products are 100% developed according to original standards, with installation dimensions and components produced using OEM-standard processing center equipment, ensuring complete interchangeability with OEM original parts.

Grease: Gear box and drive gear use German imported lubricating oil, meeting military high and low temperature standards (-50° to 230°)
Bearings: Domestic first-line brand deep groove ball bearings and INA needle roller bearings imported from the United States
Copper: Stator coil bare copper wire and armature pure copper enameled wire meet international OEM standards, high temperature resistant to 230°
Steel: Stator casing fine drawing seamless steel tube, drive gear uses 20# steel cold chamber forging process
Aluminum: All aluminum made of international standard ADC12
One-way gear: Songer system standard quality
Relay: Taiwan Songer imported with chip to prevent burning
Generator core: All use silicon steel sheet for effective magnetic field performance
Enameled wire: All F grade 180° high temperature wire from major domestic manufacturers
Insulation material: 350° high temperature resistance, inner fiber and outer rubber hose, insulating paper unified with Valeo parameters
Rotor: Claw pole and rigid ring design with technological innovation, brushless motors include magnetic steel for improved low speed performance
Electronic components: Supplied by four major domestic manufacturers
Testing: 100% production testing, warehouse testing, factory testing with OEM standard "DV" testing equipment

Manufacturer Information

Yute Motor (Guangdong) Mechanical Parts Co., Ltd., established in 2008, specializes in the production of Motor Starters and Alternators. With over 20,000 square meters of production facilities equipped with advanced equipment including high-precision CNC machining centers, CNC lathes, automatic rotor spot welding machines, and modern automatic production lines, the company achieves an annual output of more than 200,000 units. After 14 years of development, Yute Motor has become a pioneer in the construction machinery industry, with products certified to IS09001:2000, QS-9000, and ISO/TS16949 standards. The company's motor series have reached international advanced levels, with leading sales in construction machinery applications including excavators and heavy trucks.

Manufacturing Facility Overview

Manufacturing Facility

Production Equipment

Quality Control Process

Technical Team

Product Testing

Assembly Line
