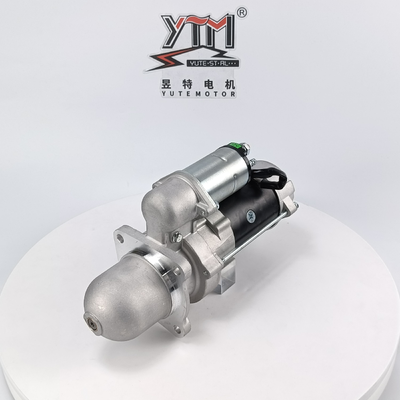

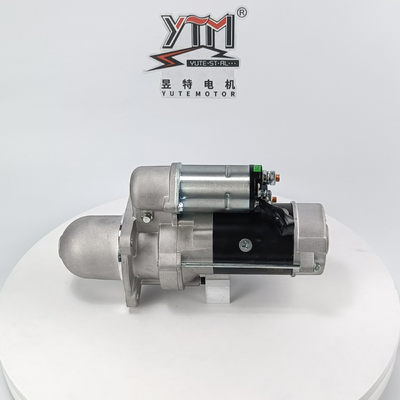

12V 2.7KW 10T Starter Motor QD2811A for Cummins 4BT3.9 6BT5.9 Engine OE 1113276 STB2267LP Excavator Parts

12V 2.7KW 10T Starter Motor QD2811A for Cummins 4BT3.9 6BT5.9 Engine OE 1113276 STB2267LP Excavator Parts

Product Details:
Place of Origin: China
Brand Name: YTM
Model Number: QD2811A
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: YTM /Neutrail /Customized
Delivery Time: 5-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 50000 Pcs/ Month
Contact Now
Detailed Product Description
Condition: 100% Brand New Warranty: 12 Months
Lead Time: 15‑30 Working Days Voltage: 12V
Power: 2.7KW Teeth: 10T
Fit Engine: Cummins 4BT3.9 / 6BT5.9 Engine Application: John Deere 310D, Lonking 833, LiuGong 836, Construction Machinery
OEM Number: 1113276, 01912346 P/N Number: STB2267LP, STB2267MN
WAI/Lester NO: STD0845, 6573N, S1062 Product Model: Delco Type
Product Series: 2811 Series Type: Excavator & Loader Replacement Starter Motor
Brand: YTM
Highlight:

12V starter motor for Cummins engine

,

2.7KW excavator starter motor

,

QD2811A starter motor OE 1113276

12V 2.7KW 10T Starter Motor QD2811A for Cummins 4BT3.9 6BT5.9 Engine
Heavy-duty replacement starter motor QD2811A for Cummins 4BT3.9 / 6BT5.9 diesel engine. Suitable for John Deere 310D, Lonking 833, LiuGong 836 loader & excavator. Delco-type starter with stable startup performance for machinery aftermarket repair.
Key Features
  • 12V, 2.7KW, 10T, 32MM pinion diameter
  • OE Interchange: 1113276, 01912346
  • Compatible P/N: STB2267LP, STB2267MN, STD0845, 6573N, S1062
  • Delco type, high-quality copper coil for strong starting torque
  • 12-month warranty, 100% brand new aftermarket spare parts

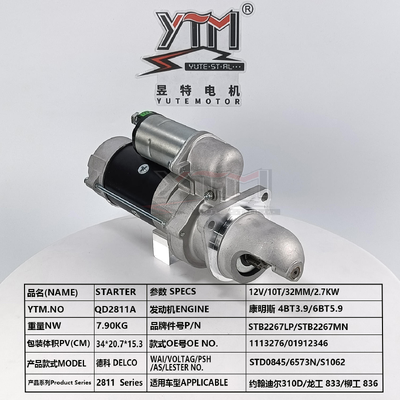

Technical Specifications
Condition100% Brand New
Voltage12V
Power Output2.7KW
Teeth10T
Pinion Diameter32MM
Fit EngineCummins 4BT3.9 / 6BT5.9 Engine
ApplicationJohn Deere 310D, Lonking 833, LiuGong 836
OEM Numbers1113276, 01912346
Reference P/NSTB2267LP, STB2267MN
WAI / Lester No.STD0845, 6573N, S1062
Product TypeDelco Type Starter, 2811 Series
Net Weight7.90KG
BrandYTM
Warranty12 months
Premium Manufacturing Standards
Our products are 100% developed according to original standards, with installation dimensions and components produced using OEM-standard processing center equipment, ensuring complete interchangeability with OEM original parts.
  1. Grease: Gear box and drive gear use German imported lubricating oil, meeting military high and low temperature standards (-50° to 230°)
  2. Bearings: Domestic first-line brand deep groove ball bearings and INA needle roller bearings imported from the United States
  3. Copper: Stator coil bare copper wire and armature pure copper enameled wire meet international OEM standards, high temperature resistant to 230°
  4. Steel: Stator casing fine drawing seamless steel tube, drive gear uses 20# steel cold chamber forging process
  5. Aluminum: All aluminum made of international standard ADC12
  6. One-way gear: Songer system standard quality
  7. Relay: Taiwan Songer imported with chip to prevent burning
  8. Generator core: All use silicon steel sheet for effective magnetic field performance
  9. Enameled wire: All F grade 180° high temperature wire from major domestic manufacturers
  10. Insulation material: 350° high temperature resistance, inner fiber and outer rubber hose, insulating paper unified with Valeo parameters
  11. Rotor: Claw pole and rigid ring design with technological innovation, brushless motors include magnetic steel for improved low speed performance
  12. Electronic components: Supplied by four major domestic manufacturers
  13. Testing: 100% production testing, warehouse testing, factory testing with OEM standard "DV" testing equipment
Manufacturer Information
Yute Motor (Guangdong) Mechanical Parts Co., Ltd., established in 2008, specializes in the production of Motor Starters and Alternators. With over 20,000 square meters of production facilities equipped with advanced equipment including high-precision CNC machining centers, CNC lathes, automatic rotor spot welding machines, and modern automatic production lines, the company achieves an annual output of more than 200,000 units. After 14 years of development, Yute Motor has become a pioneer in the construction machinery industry, with products certified to IS09001:2000, QS-9000, and ISO/TS16949 standards. The company's motor series have reached international advanced levels, with leading sales in construction machinery applications including excavators and heavy trucks.
Manufacturing Facility & Quality Processes
Yute Motor modern manufacturing facility with production equipment
Manufacturing Facility
Yute Motor advanced production equipment and machinery
Production Equipment
Yute Motor quality control process and inspection procedures
Quality Control Process
Yute Motor experienced technical team working on product development
Technical Team
Yute Motor comprehensive product testing and validation procedures
Product Testing
Yute Motor modern assembly line for starter motor production
Assembly Line
Yute Motor finished starter motor products ready for shipment
Finished Products
