Name: Starter Motor 12V 9T 2.0KW QDJ1501C OE 8941337582 2280001890 STN3132CL For Isuzu 4LE2 Engine Hitachi EX55UR ZX70‑3 Denso Type Starting Motor
Brand: Yute Motor(Guangzhou) Mechanical parts Co., Ltd.
SKU: QDJ1501C
Price: 92.00 USD
Availability: InStock

Home Products Engine Starter Motor

Starter Motor 12V 9T 2.0KW QDJ1501C OE 8941337582 2280001890 STN3132CL For Isuzu 4LE2 Engine Hitachi EX55UR ZX70‑3 Denso Type Starting Motor

Product Details:

Place of Origin:	China
Brand Name:	YTM
Model Number:	QDJ1501C

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	YTM /Neutrail /Customized
Delivery Time:	5-30 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,
Supply Ability:	50000 Pcs/ Month

Contact Now

Detailed Product Description

Condition:	100% Brand New	Warranty:	12 Months
Appliion:	Hitachi	Lead Time:	15‑30 Working Days
Voltage:	12V	Power:	2.0KW
Teeth:	9T	Fit Engine:	Isuzu 4LE2
Application:	Hitachi EX55UR / ZX70‑3 Excavator	OEM Number:	8941337582, 2280001890
Reference No.:	STN3132CL, STN3132DJ, 18449N, S6399S	Product Type:	Denso Type Starter
Product Series:	1501 Series
Highlight:	12V starter motor for Isuzu 4LE2 engine , Hitachi EX55UR starting motor 2.0KW , Denso type starter motor 9T OE

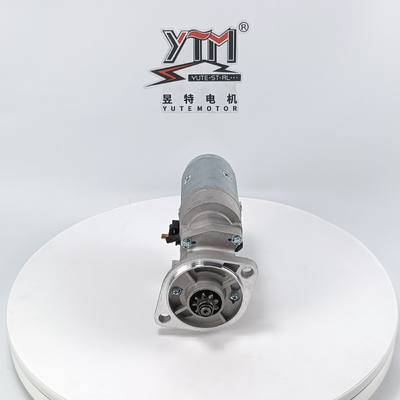

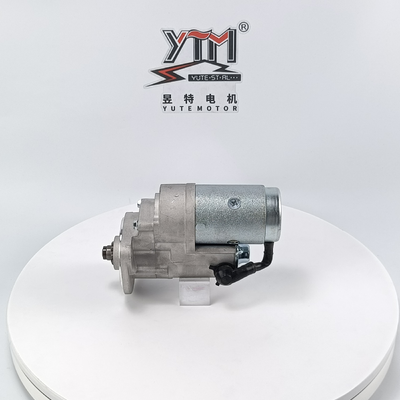

Starter Motor 12V 9T 2.0KW QDJ1501C

This heavy-duty 12V 9T 2.0KW starter motor QDJ1501C is a brand-new aftermarket replacement designed specifically for Isuzu 4LE2 diesel engine, widely used on Hitachi EX55UR / ZX70-3 excavator. Built with premium pure copper winding, it delivers powerful starting performance with outstanding heat-resistance and anti-vibration performance to adapt harsh construction site working conditions. Every starter is fully inspected and performance-tested before shipment to guarantee long-time reliable operation.

Key Features

Direct OE replacement design for quick installation and simple maintenance
Premium pure copper winding ensures powerful 2.0KW starting performance and extended service life
Excellent heat-resistant & anti-vibration performance for excavator & construction machinery
9-tooth drive gear, fully matches original equipment specifications
Strict inspection and complete performance testing for every unit before delivery
100% brand-new aftermarket spare part for Isuzu 4LE2 / Hitachi EX55UR ZX70-3 excavator

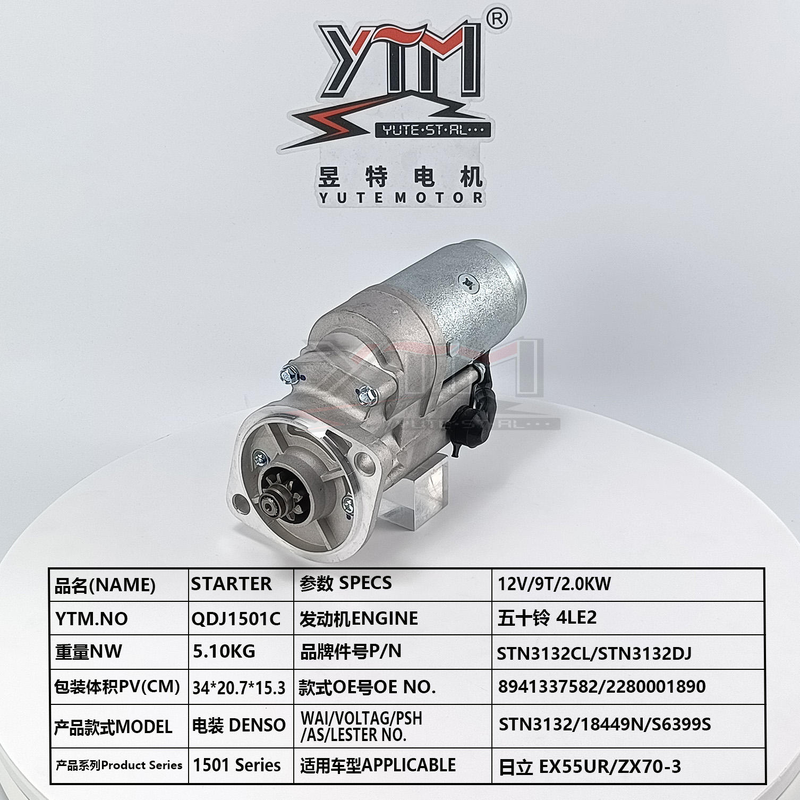

Technical Specifications

Brand	YTM
Product Name	Starter Motor / Starting Motor
Manufacturer	YTM
YTM Part No.	QDJ1501C
OEM & Part Numbers	8941337582, 2280001890, STN3132CL, STN3132DJ, 18449N, S6399S
Specification	12V, 2.0KW, 9T
Engine Compatibility	Isuzu 4LE2
Applicable Equipment	Hitachi EX55UR / ZX70-3 Excavator
Net Weight	5.10 KG
Packing Dimension	3420.715.3 CM
Product Series	1501 Series
Product Type	Denso Type

Premium Manufacturing Standards

Our products are 100% developed according to the original standard, with installation dimensions and components produced and processed according to OEM specifications, ensuring complete interchangeability with OEM original parts.

Grease: Gear box and drive gear use German imported lubricating oil meeting military high/low temperature standards (-50° to 230°)
Bearings: Domestic first-line brand deep groove ball bearings and INA needle roller bearings imported from the United States
Copper: Stator coil bare copper wire and armature pure copper enameled wire meet international OEM standards, high temperature resistant to 230°
Steel: Stator casing uses fine drawing seamless steel tube, drive gear uses 20# steel cold chamber forging process
Aluminum: All aluminum components made of international standard ADC12
One-way gear: Songer system standard quality
Relay: Taiwan Songer imported with chip to prevent burning
Generator core: Silicon steel sheet for effective magnetic field performance
Enameled wire: All F grade 180° high temperature wire from major domestic manufacturers
Insulation material: 350° high temperature resistance, inner fiber and outer rubber hose, insulating paper with Valeo unified parameters
Rotor: Claw pole and rigid ring with magnetic steel added for improved low speed performance
Electronic components: Supplied by four major domestic manufacturers
Testing: 100% production testing, warehouse testing, factory testing with OEM standard "DV" testing equipment

Manufacturer Profile

Yute Motor (Guangdong) Mechanical Parts Co., Ltd., established in 2008, specializes in the production of Motor Starters and Alternators. With over 20,000 square meters of production facilities equipped with advanced equipment including high-precision CNC machining centers, automatic rotor spot welding machines, and modern automatic production lines, the company achieves an annual output of more than 200,000 units.

After 14 years of development, Yute Motor has become a pioneer in the construction machinery industry, with products certified to IS09001:2000, QS-9000, and ISO/TS16949 standards. The company's motor series have reached international advanced levels, with sales of construction machinery motors for excavators and heavy trucks consistently leading the market.
