Name: 3610003601 3610003602 1195239 1200107 12V/0.9KW/8T Engine Starter Motor for HYUNDAI and VALEO with Premium Quality Components
Brand: Yute Motor(Guangzhou) Mechanical parts Co., Ltd.
SKU: STV1006
Price: 92.00 USD
Availability: InStock

Home Products Engine Starter Motor

3610003601 3610003602 1195239 1200107 12V/0.9KW/8T Engine Starter Motor for HYUNDAI and VALEO with Premium Quality Components

Product Details:

Place of Origin:	China
Brand Name:	YUTE
Model Number:	STV1006

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	YTM /Neutrail /Customized
Delivery Time:	5-30 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	50000 Pcs/ Month

Contact Now

Detailed Product Description

Voltage:	24V	Power:	5KW
Teeth Count:	10T	Net Weight:	7.5KG
Temperature Resistance:	-50°C To 230°C	Insulation Material:	350°C High Temperature

3610003601 3610003602 1195239 1200107 12V/0.9KW/8T Engine Starter Motor for HYUNDAI and VALEO with Premium Quality Components

Cross-Reference Part Numbers

BATE	80123708
Bosc	0986025720, 0986UR1808
Cargo	114443
Delco Remy	8000841, DRS0808
HC-PARTS	CS1465
Hyundai	3610003601, 3610003602, 361002B100, 361002B100B, 361002B200, 361002B500, 361002B502
KRAUF	STA1465, STA1465BA, STA1465EX, STA1465RD, STA1465RN, STA7465BA, STA8465BA, STB1465JA, STD1465KR, STD1465RD, STM2465BA, STV1465BA, STV1465KR, STV1465RD
Mando	BN361002B100, BN361002B500, BN361002B502, EX3610003602, S0001195239, S0001200107
Messmer	220546
Mitsubishi	M0T32571ZE
Motorherz	STA1465RB, STA1465WA, STB1465RB, STM1465RB, STV1465RB, STV1465WA
Unipoint	STR7044
Valeo	1195239, 1200107, 1202653, 1250303, 600234, 600718
WPS	17593N
ZAUFER	300N10059Z

Premium Quality Components

Grease: Gear box and drive gear utilize German imported lubricating oil meeting high/low temperature standards (-50°C to 230°C)
Bearings: Domestic first-line brand deep groove ball bearings and INA needle roller bearings imported from the United States
Copper: Stator coil bare copper wire and armature pure copper enameled wire meet international OEM standards with high temperature resistance to 230°C
Steel: Stator casing features fine drawing seamless steel tube; drive gear uses 20# steel cold chamber forging process
Aluminum: All aluminum components manufactured from international standard ADC12 material
One-way Gear: Songer system standard quality
Relay: Taiwan Songer imported with chip protection to prevent burning
Generator Core: Utilizes silicon steel sheets for effective magnetic field performance
Enameled Wire: All F grade 180°C high temperature wire from major domestic manufacturers
Insulation Material: 350°C high temperature resistance, featuring inner fiber and outer rubber hose with Valeo unified parameter platform
Rotor: Claw pole and rigid ring design with technological innovation for improved low speed performance; brushless motors include magnetic steel
Electronic Components: Supplied by four major domestic manufacturers

Vehicle Applications

HYUNDAI i20 1.4 PB PBT 2012- 1396ccm G4FA/ HYUNDAI i30 I 1.6 FD 2007-2012 1591ccm G4FC/ HYUNDAI i40 1.6 GDI VF 2012- 1591ccm G4FC/ HYUNDAI ix20 1.4 JC 2012- 1396ccm G4FA/ HYUNDAI Veloster 1.6 GDI FS 2011- 1591ccm G4FD/ HYUNDAI Veloster 1.6 MPI FS 2011- 1591ccm G4FG/ HYUNDAI Veloster 1.6 T-GDI FS 2011- 1591ccm G4FJ/ KIA Carens IV 1.6 RP 2013- 1591ccm G4FD/ KIA Cee'd I 1.4 ED 2008-2012 1396ccm G4FA/ KIA Cee'd I 1.6 ED 2008-2012 1591ccm G4FC/ KIA Cee'd II 1.4 CVVT JD 2012- 1396ccm G4FA/ KIA Rio III 1.4 CVVT UB 2011- 1396ccm G4FA/ KIA Soul I 1.6i AM 2012- 1591ccm G4FC / KIA Sportage III 1.6 GDI SL 2010- 1591ccm G4FD / KIA Venga 1.4 CVVT YN 2009- 1396ccm G4FA / KIA Venga 1.6 CVVT YN 2009- 1591ccm G4FC

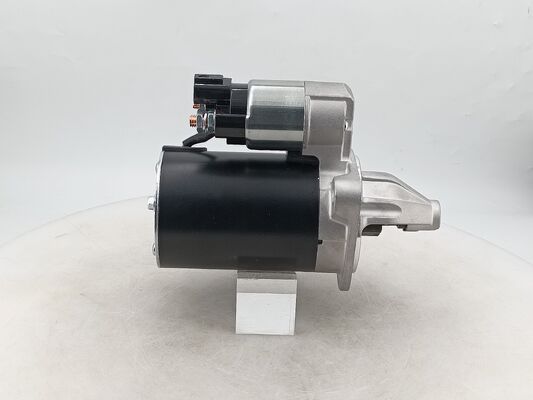

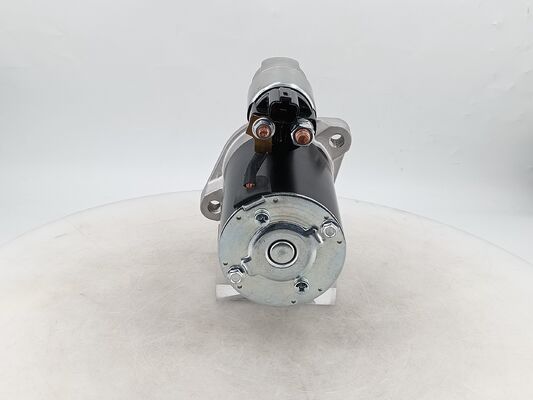

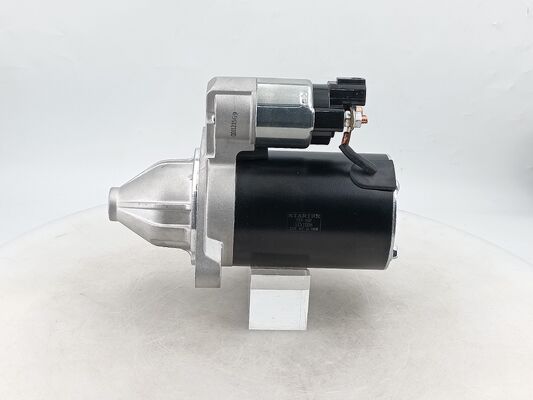

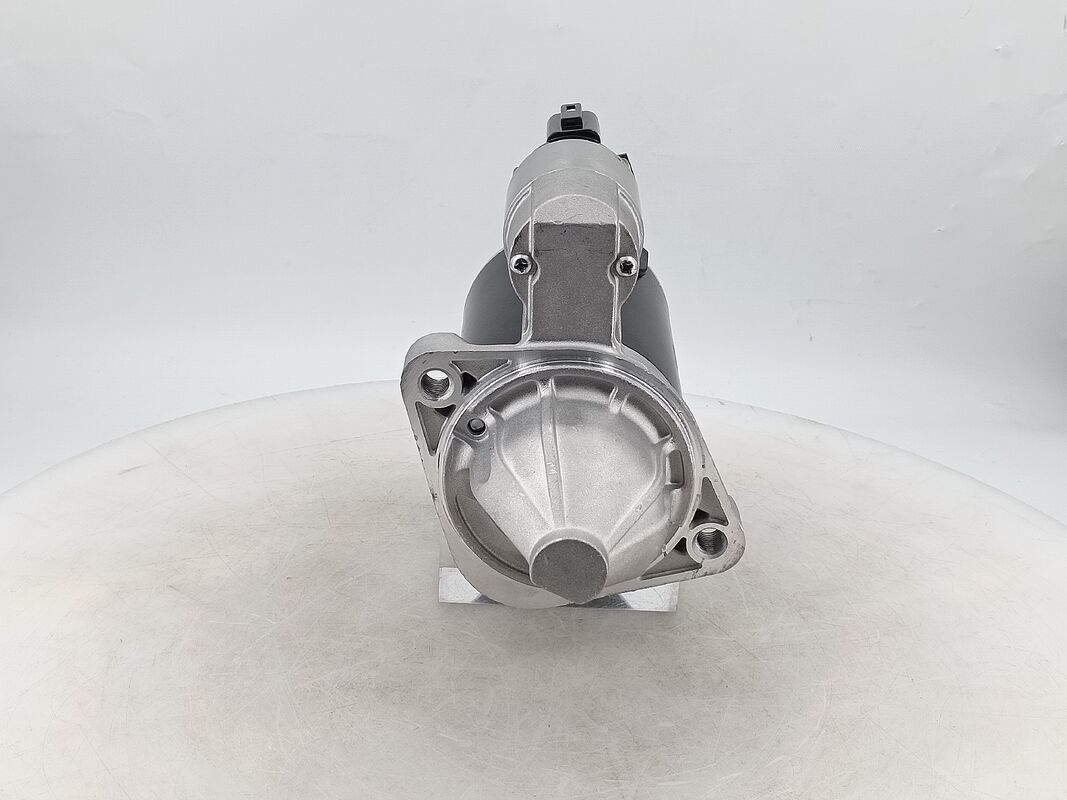

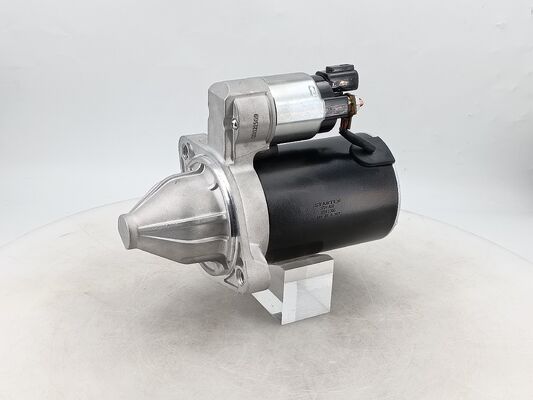

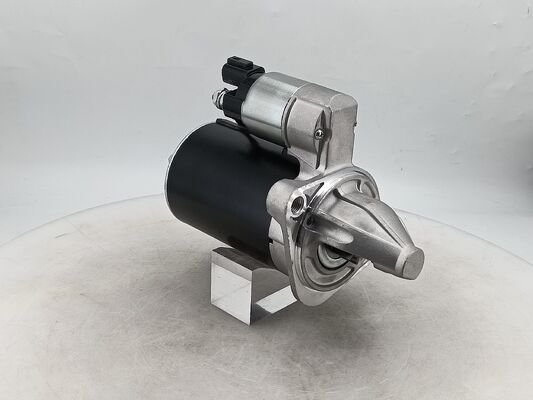

Product Image

Manufacturer Profile

Yute Motor (Guangdong) Mechanical Parts Co., Ltd., established in 2008, specializes in the production of motor starters and alternators. With over 20,000 square meters of production facilities equipped with advanced equipment including high-precision CNC machining centers, CNC lathes, automatic rotor spot welding machines, and modern automated production lines, the company achieves an annual output of more than 200,000 units.

After 14 years of dedicated development, Yute Motor has become an industry pioneer, with products certified to ISO9001:2000, QS-9000, and ISO/TS16949 standards. The motor series produced by Yute have reached international advanced levels, with construction machinery motor sales for excavators and heavy trucks consistently leading the market.
