| Place of Origin: | China |
|---|---|
| Brand Name: | YTM |
| Certification: | ISO9001/CE/TS16949 |
| Model Number: | HT202 |
| Minimum Order Quantity: | 10 |
| Price: | 50-70 USD per set |
| Packaging Details: | Each with carton box , four colors are available , 2 to 4 pcs in bigger carton box. |
| Delivery Time: | 1-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pcs per month |

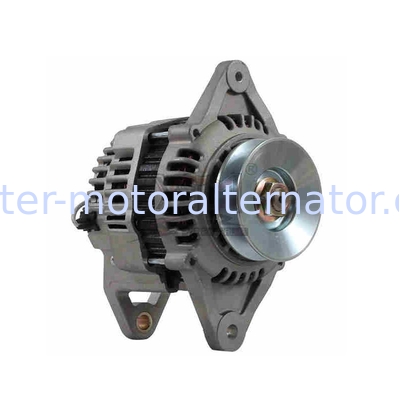

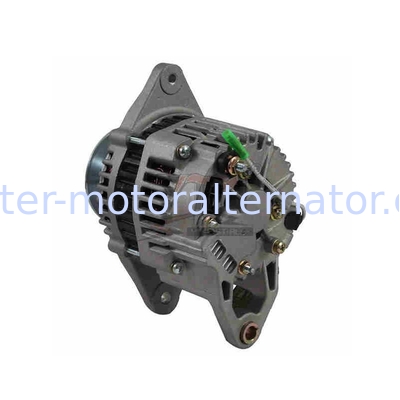

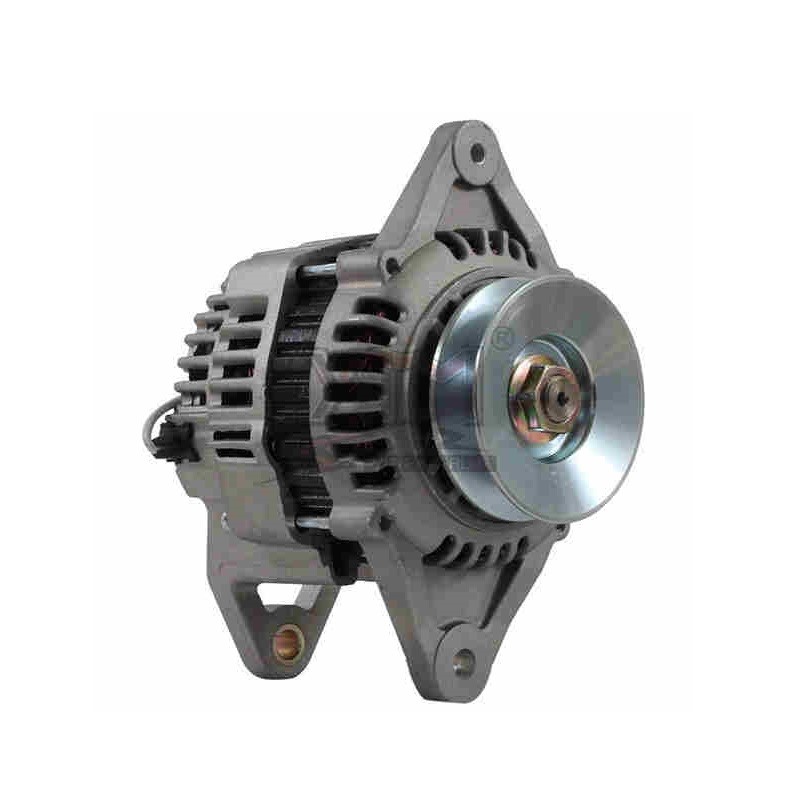

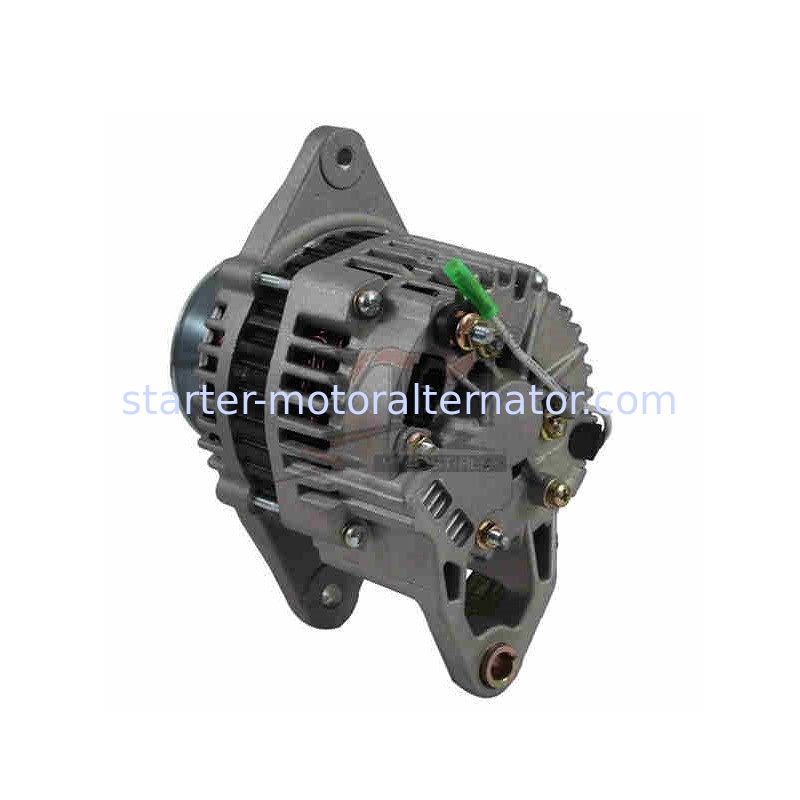

| Product Name: | Car Alternator Alternating Alternator Generator Auto Alternator | Model: | 4D94L Engine |
|---|---|---|---|
| OE Number: | LR160-735 LR160735 LR160735B LR160741 12390077210 | Voltage: | 12V |
| Amperage: | 60A | Pulley: | Single Slot |
| Rotation: | CW | Warranty: | 18 Months |
| Application: | DH60-7 Mustang 12761 | Condition: | Brand New |
| Highlight: | 4D94L Engine Alternator Generator,12V Alternator Generator |
||
Specification
| Property | Value |
|---|---|
| Brand | YTM |
| Voltage (V) | 12 |
| Amperage (A) | 60 |
| Rotation | CW |
| Pulley Type | Fixed |
| Pulley Grooves | 1 |
| Pulley Diameter (mm) | 91 |
| B+ Terminal (30) | M6 |
| Alternator Design | IF/IR |
| OE Manufacturer | HITACHI |
| Vehicle Manufacturer | YANMAR |
Cross References
| OEM | OEM Reference |
|---|---|
| HITACHI | LR160735 |
| HITACHI | LR160735B |
| YANMAR | 12390077210 |
Application
| DOOSAN | DOOSAN Solar 75-V Mini Excavator Yanmar [4-TNE-98] 2005- GEHL 7800 Skid Steer Loader Yanmar [4TNE106] 2001-2003 |
