24V Engine Starter Motor for MASSEY FERGUSON MF with 18 Months Warranty

Basic Information
Place of Origin: China
Brand Name: YUTE
Model Number: QD1513C
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: YTM /Neutrail /Customized
Delivery Time: 5-30 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 50000 Pcs/ Month
Detail Information
Appliion: MASSEY FERGUSON MF Warranty: 18 Months
Condition: 100% New Voltage: 24V
Quality: 100%tested
Highlight:

IS1195 Engine Starter Motor

,

CST21106 Engine Starter Motor

,

Engine Starter Motor STE3654YJ


Product Description

IS1195 Engine Starter Motor
CST21106 3127539 2873K632 STE3654TJ STE3654YJ For MASSEY FERGUSON MF
Product Overview
IS1195 12V 10T 3.0KW CST21106 3127539 STE3654TJ STE3654YJ starter motor for MASSEY FERGUSON MF
Our products are 100% developed according to original standards, with installation dimensions and components manufactured to OEM specifications using precision processing center equipment, ensuring complete interchangeability with OEM original parts.
Premium Quality Components
  • Grease: Gear box and drive gear utilize German imported lubricating oil meeting military high/low temperature standards (-50°C to 230°C)
  • Bearings: Domestic first-line brand deep groove ball bearings and INA needle roller bearings imported from the United States
  • Copper: Stator coil bare copper wire and armature pure copper enameled wire meet international OEM standards with high temperature resistance to 230°C
  • Steel: Stator casing features fine drawing seamless steel tube; drive gear uses 20# steel cold chamber forging process
  • Aluminum: All aluminum components manufactured from international standard ADC12 material
  • One-way Gear: Songer system standard quality
  • Relay: Taiwan Songer imported with chip protection to prevent burning
  • Generator Core: Utilizes silicon steel sheets for effective magnetic field performance
  • Enameled Wire: All F grade 180°C high temperature wire from major domestic manufacturers
  • Insulation Material: 350°C high temperature resistance, featuring inner fiber and outer rubber hose with Valeo unified parameter platform
  • Rotor: Claw pole and rigid ring design with technological innovation for improved low speed performance; brushless motors include magnetic steel
  • Electronic Components: Supplied by four major domestic manufacturers
Quality Assurance
100% production testing, warehouse testing, and factory testing. Each motor undergoes OEM standard "DV" testing using equipment from Canada's North American testing platform company.
OEM Cross Reference Numbers
Manufacturer Part Numbers
AGCO 067916T1
6911913, 7020620
Cargo 113654
CAS CST30161
Generic 3127539, 3644130
Delco 19083001, DRS0066, DRS0066N
Denso 0740001000, 4280001380, DSN044
HC-PARTS 113654
Iskra 019212, 11131014, 11131397, 11131508, 11131973, 11132175, AZF4102, AZF4132, AZF4264, AZF4321, AZF4538, AZF4569, IS1071
KRAUF STE3654CL, STE3654LC, STE3654MA, STE3654SK, STE3654SU, STE3654TJ, STE3654YJ, STI3654LC, STI3654SU
LUCAS LRS02206, LRS2206
Magneti Marelli 063280040010, 63280040, MSN8040
MASSEY FERGUSON 283490M91, 3667040J9A, 3784889M1, 3784889M2, 3784890M1, 3823621M91, 3823621M93, 3823621M94
Motorherz STE3654RB, STE3654WA, STE8654WA
NR 017418
Perkins 2872K404, 2873K404
Prestolite 35259310
WAI 2-3279-2W
WPS 18941N, 22809MM, 30529N
ZAUFER 300N10090Z
Product Images

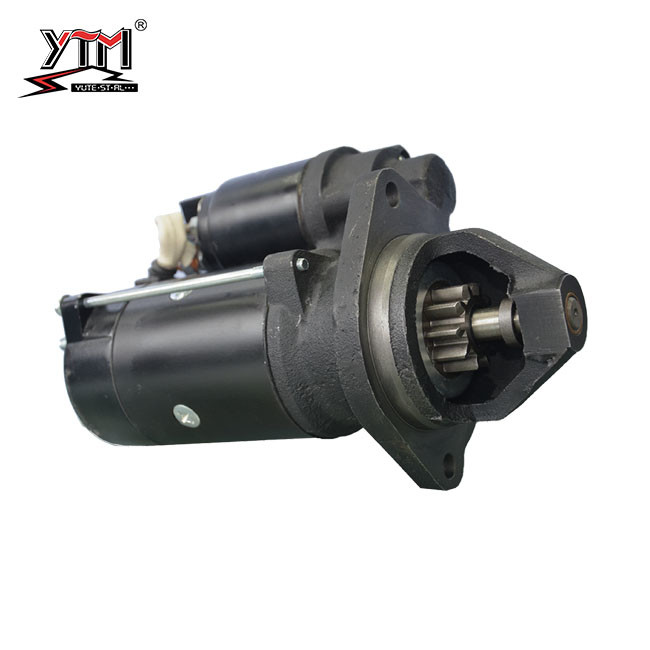

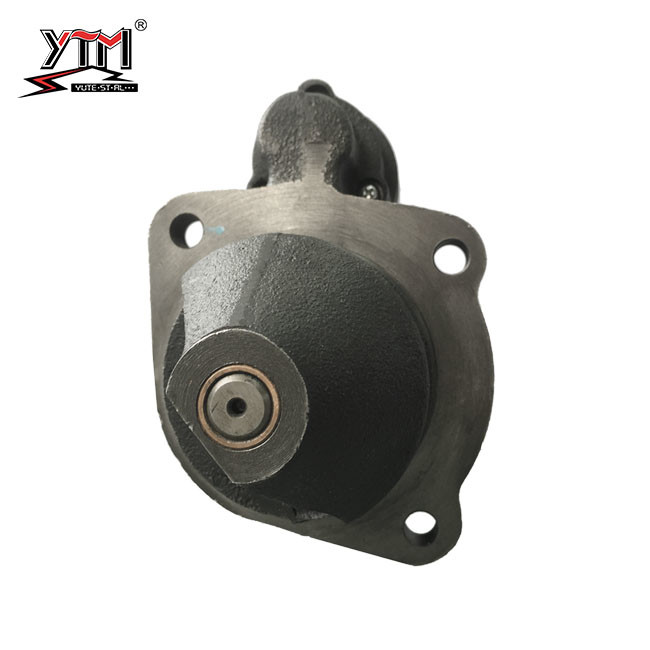

24V Engine Starter Motor for MASSEY FERGUSON MF with 18 Months Warranty 0
Manufacturer Profile
Yute Motor (Guangdong) Mechanical Parts Co., Ltd., established in 2008, specializes in the production of motor starters and alternators. With over 20,000 square meters of production facilities equipped with advanced equipment including high-precision CNC machining centers, CNC lathes, automatic rotor spot welding machines, and modern automated production lines, the company achieves an annual output of more than 200,000 units.
After 14 years of dedicated development, Yute Motor has become an industry pioneer, with products certified to ISO9001:2000, QS-9000, and ISO/TS16949 standards. The motor series produced by Yute have reached international advanced levels, with construction machinery motor sales for excavators and heavy trucks consistently leading the market.
Manufacturing Facilities
24V Engine Starter Motor for MASSEY FERGUSON MF with 18 Months Warranty 1
24V Engine Starter Motor for MASSEY FERGUSON MF with 18 Months Warranty 2
24V Engine Starter Motor for MASSEY FERGUSON MF with 18 Months Warranty 3
24V Engine Starter Motor for MASSEY FERGUSON MF with 18 Months Warranty 4
24V Engine Starter Motor for MASSEY FERGUSON MF with 18 Months Warranty 5
24V Engine Starter Motor for MASSEY FERGUSON MF with 18 Months Warranty 6
24V Engine Starter Motor for MASSEY FERGUSON MF with 18 Months Warranty 7
24V Engine Starter Motor for MASSEY FERGUSON MF with 18 Months Warranty 8
24V Engine Starter Motor for MASSEY FERGUSON MF with 18 Months Warranty 9
