10T 3KW Engine Starter Motor For Cummins ISB 6.7L 4996708 4280007110

Basic Information
Place of Origin: China
Brand Name: YUTE
Model Number: QDJ2653A6
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: YTM /Neutrail /Customized
Delivery Time: 5-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 Pcs/ Month
Detail Information
Appliion: CUMMINS ISB 6.7L ENGINE Warranty: 1 Year
Condition: 100% New
High Light:

10T Engine Starter Motor

,

4280007110 Engine Starter Motor

,

Cummins ISB 6.7L Engine Starter Motor


Product Description

12V 10T 3KW STARTER MOTOR APPLIION FOR CUMMINS ISB 6.7L ENGINE 4996708 4280007110



Our products are 100% developed according to the original standard, its installation size and parts are all produced and processed according to OEM standard processing center equipment, so that all parts are exchanged with OEM original.

1.Grease: gear box and drive gear adopt German imported lubriing oil, military high and low temperature standard (-50°----230°).

2.Bearings: We all use domestic first-line brand humanism deep groove ball bearings, INA needle roller bearings imported from the United States.

3.Copper: The bare copper wire of stator coil and pure copper enameled wire of armature reach international OEM standard,high temperature resistant to 230°.

4.Steel: Stator casing fine drawing seamless steel tube,the drive gear adopts 20# steel cold chamber forging process.

5.Aluminum: All aluminum is made of international standard ADC12

6.One-way gear: Songer system standard quality

7.Relay: Taiwan Songer Imported with chip to prevent burning.

8.Generator core: all use silicon steel sheet effective magnetic field performance

9.Enameled wire: all F grade 180° high temperature wire. (Xiandeng, Great Wall two major domestic manufacturers)

10.Insulation material: 350° high temperature resistance, inner fiber and outer rubber hose, insulating paper and Valeo unified parameter platform.

11.Rotor: claw pole and rigid ring, in order to improve the low speed performance to achieve technological innovation, brushless motor all add magnetic steel.

12.Electronic components: supplied by four major domestic manufacturers (Xuzhou Yunyi, Xuzhou Xiangyue, Ningbo Chewang, Shanghai Changbo)

13.Testing: 100% production testing, warehouse testing, factory testing, and each motor is tested according to OEM standard "DV" testing equipment (testing equipment provided by Canada "DV" testing platform company in North America).





12V 10T 3KW STARTER MOTOR APPLIION FOR CUMMINS ISB 6.7L ENGINE 4996708 4280007110



voltage: 12V  DIENTES:10T  POTENCIA:3KW



OE NO:

Cummins 4996708
Denso 4280007110
KRAUF STN6708LP, STN6708NL, STN6708WD
Motorherz STN6708WA
ZAUFER 300N11251Z





APPLIION:



CUMMINS ISB 6.7L ENGINE

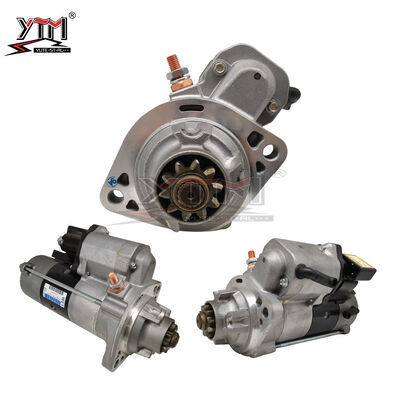

Product Image


heavy duty starter motor12 valve cummins startercummins isx starter





Company introduction:


 Yute Motor(Guangdong) Mechanical parts Co., Ltd., established in 2008, focus on the production of Motor Starters and Alternators. With more than 20,000 square meters of wide production workshop parts and equipped with a number of advanced equipment such as high-precision CNC machining centers and CNC lathes, automatic rotor spot welding machines, CNC milling machines, on-site foaming machines, modern automatic production lines, and automatic insulation treatment producers, the company’s annual output value reaches more than 200,000 units. After 14 years unremitting efforts, the company has become a pioneer in the construction machinery industry, and our products have successively passed the certifiions of IS09001:2000, QS-9000, and ISO/TS16949. Up to now, the motor series produced by Yute has reached the international advanced level. Besides, the motor sales volume of construction machinery, such as excavators and heavy trucks are in the lead all the year round.
10T 3KW Engine Starter Motor For Cummins ISB 6.7L 4996708 4280007110 3
10T 3KW Engine Starter Motor For Cummins ISB 6.7L 4996708 4280007110 4
10T 3KW Engine Starter Motor For Cummins ISB 6.7L 4996708 4280007110 510T 3KW Engine Starter Motor For Cummins ISB 6.7L 4996708 4280007110 6
10T 3KW Engine Starter Motor For Cummins ISB 6.7L 4996708 4280007110 710T 3KW Engine Starter Motor For Cummins ISB 6.7L 4996708 4280007110 8
10T 3KW Engine Starter Motor For Cummins ISB 6.7L 4996708 4280007110 910T 3KW Engine Starter Motor For Cummins ISB 6.7L 4996708 4280007110 10
10T 3KW Engine Starter Motor For Cummins ISB 6.7L 4996708 4280007110 11
