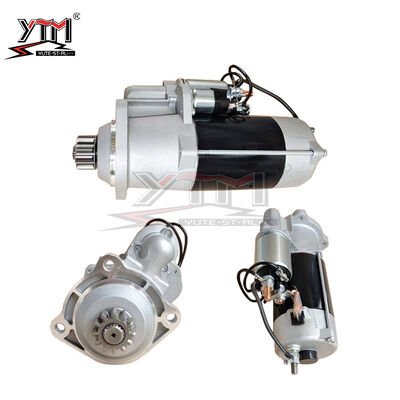

12T 6KW Starter Motor For Liebherr A944C A954C Engine 0001330012 10219978

Basic Information
Place of Origin: China
Brand Name: YUTE
Certification: ISO9001 / TS16949
Model Number: QDJ2461H
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: YTM /Neutrail /Customized
Delivery Time: 5-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 Pcs/ Month
Detail Information
Application: LIEBHERR A944C,A954C,LR1100,LR1160,LTM 1050,LTM 1070,R944C,R954C,RL44 VOLVO Various Models Warranty: 1 Year
Condition: 100% New
High Light:

6KW Starter Motor

,

Liebherr A944C Starter Motor

,

0001330012 Starter Motor


Product Description

24V 12T 6KW STARTER MOTOR APPLICATION FOR LIEBHERR A944C A954C Engine 0001330012 10219978



Our products are 100% developed according to the original standard, its installation size and parts are all produced and processed according to OEM standard processing center equipment, so that all parts are exchanged with OEM original.

1.Grease: gear box and drive gear adopt German imported lubricating oil, military high and low temperature standard (-50°----230°).

2.Bearings: We all use domestic first-line brand humanism deep groove ball bearings, INA needle roller bearings imported from the United States.

3.Copper: The bare copper wire of stator coil and pure copper enameled wire of armature reach international OEM standard,high temperature resistant to 230°.

4.Steel: Stator casing fine drawing seamless steel tube,the drive gear adopts 20# steel cold chamber forging process.

5.Aluminum: All aluminum is made of international standard ADC12

6.One-way gear: Songer system standard quality

7.Relay: Taiwan Songer Imported with chip to prevent burning.

8.Generator core: all use silicon steel sheet effective magnetic field performance

9.Enameled wire: all F grade 180° high temperature wire. (Xiandeng, Great Wall two major domestic manufacturers)

10.Insulation material: 350° high temperature resistance, inner fiber and outer rubber hose, insulating paper and Valeo unified parameter platform.

11.Rotor: claw pole and rigid ring, in order to improve the low speed performance to achieve technological innovation, brushless motor all add magnetic steel.

12.Electronic components: supplied by four major domestic manufacturers (Xuzhou Yunyi, Xuzhou Xiangyue, Ningbo Chewang, Shanghai Changbo)

13.Testing: 100% production testing, warehouse testing, factory testing, and each motor is tested according to OEM standard "DV" testing equipment (testing equipment provided by Canada "DV" testing platform company in North America).





24V 12T 6KW STARTER MOTOR APPLICATION FOR LIEBHERR A944C A954C Engine 0001330012 10219978



voltage: 24V  DIENTES:12T  POTENCIA:6KW



OE NO:

AS S0645S
Bosch 0001330012, 0001330067, 0001330068
Cargo 115464, 116044
KRAUF STB9012MN, STB9012UL
Liebherr 10219978, 11386644
Motorherz STB9012WA
VOLVO 10219978
ZAUFER 300N10577Z





APPLICATION:



LIEBHERR A944C,A954C,LR1100,LR1160,LTM 1050,LTM 1070,R944C,R954C,RL44
VOLVO Various Models



Product Image


bosch starter motormotor startersengine starter







Company introduction:


 Yute Motor(Guangdong) Mechanical parts Co., Ltd., established in 2008, focus on the production of Motor Starters and Alternators. With more than 20,000 square meters of wide production workshop parts and equipped with a number of advanced equipment such as high-precision CNC machining centers and CNC lathes, automatic rotor spot welding machines, CNC milling machines, on-site foaming machines, modern automatic production lines, and automatic insulation treatment producers, the company’s annual output value reaches more than 200,000 units. After 14 years unremitting efforts, the company has become a pioneer in the construction machinery industry, and our products have successively passed the certifications of IS09001:2000, QS-9000, and ISO/TS16949. Up to now, the motor series produced by Yute has reached the international advanced level. Besides, the motor sales volume of construction machinery, such as excavators and heavy trucks are in the lead all the year round.
12T 6KW Starter Motor For Liebherr A944C A954C Engine 0001330012 10219978 3
12T 6KW Starter Motor For Liebherr A944C A954C Engine 0001330012 10219978 4
12T 6KW Starter Motor For Liebherr A944C A954C Engine 0001330012 10219978 512T 6KW Starter Motor For Liebherr A944C A954C Engine 0001330012 10219978 6
12T 6KW Starter Motor For Liebherr A944C A954C Engine 0001330012 10219978 712T 6KW Starter Motor For Liebherr A944C A954C Engine 0001330012 10219978 8
12T 6KW Starter Motor For Liebherr A944C A954C Engine 0001330012 10219978 912T 6KW Starter Motor For Liebherr A944C A954C Engine 0001330012 10219978 10
12T 6KW Starter Motor For Liebherr A944C A954C Engine 0001330012 10219978 11
