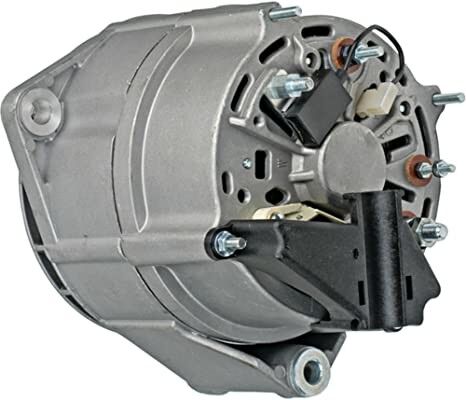

24V 100A MERCEDES BENZ TRUCKS & BUSES Alternator electrical generator Lester 12388 0091549902 0101540002 0101548902

Basic Information
Place of Origin: China
Brand Name: YUTE
Certification: ISO9001 / TS16949
Model Number: 12388
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: YTM /Neutrail /Customized
Delivery Time: 5-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 Pcs/ Month
Detail Information
Application: MERCEDES BENZ TRUCKS & BUSES Warranty: 1 Year
Condition: 100% New

Product Description

Our products are 100% developed according to the original standard, its installation size and parts are all produced and processed according to OEM standard processing center equipment, so that all parts are exchanged with OEM original.

1.Grease: gear box and drive gear adopt German imported lubricating oil, military high and low temperature standard (-50°----230°).

2.Bearings: We all use domestic first-line brand humanism deep groove ball bearings, INA needle roller bearings imported from the United States.

3.Copper: The bare copper wire of stator coil and pure copper enameled wire of armature reach international OEM standard,high temperature resistant to 230°.

4.Steel: Stator casing fine drawing seamless steel tube,the drive gear adopts 20# steel cold chamber forging process.

5.Aluminum: All aluminum is made of international standard ADC12

6.One-way gear: Songer system standard quality

7.Relay: Taiwan Songer Imported with chip to prevent burning.

8.Generator core: all use silicon steel sheet effective magnetic field performance

9.Enameled wire: all F grade 180° high temperature wire. (Xiandeng, Great Wall two major domestic manufacturers)

10.Insulation material: 350° high temperature resistance, inner fiber and outer rubber hose, insulating paper and Valeo unified parameter platform.

11.Rotor: claw pole and rigid ring, in order to improve the low speed performance to achieve technological innovation, brushless motor all add magnetic steel.

12.Electronic components: supplied by four major domestic manufacturers (Xuzhou Yunyi, Xuzhou Xiangyue, Ningbo Chewang, Shanghai Changbo)

13.Testing: 100% production testing, warehouse testing, factory testing, and each motor is tested according to OEM standard "DV" testing equipment (testing equipment provided by Canada "DV" testing platform company in North America).



Product Description:



24V 100A  MERCEDES BENZ TRUCKS & BUSES  Alternator electrical generator Lester 12388 0091549902 0101540002 0101548902

Voltage 24
Amps:
100
Pulley:
9



OE NO:

Bosch 0120468143, 0120468145, 0120501151, 0986041030, 0986043890, 1986A01059, 1986A01060, 1986A01102, 1986A01118, 6033GB3010, 6033GB3023, 6033GB3086
Cargo 113448
CAS CAL10615AS, CAL10615ES
DAF 1516480R
Delco 19025109, 19025110, 19025111
FT 1800111482, V836659786
HC-PARTS CA1505IR
Iskra 11209600, AAN3211, IA9448
F063075
KRAUF ALB1505AN, ALB1505DD, ALB1505GB, ALB1505KL, ALB1505LK, ALB1505LP, ALB1505NW, ALB1505UX, ALB1505YX, ALB5505NW, ALB6505NW, ALB6505UX, ALB9505NW
Magneti Marelli 943357261
MAHLE MG803
Mercedes Benz 0091549902, 0101540002, 0101548902, 0101549202, 0111548902, A0091549902, A0101540002, A0101549202, A010154920280, A0111548902
Messmer 210302, 210304, 210308
Motorherz ALB1505RB, ALB1505WA, ALB6505WA
Prestolite 860563
RT 0986041030
Unipoint ALT0114
Valeo 437441, 440137
VOLVO 20402404
WAI 1-3044-25W
WPS 12388N
ZAUFER 301N20014Z

APPLICATION:

MERCEDES BENZ TRUCKS & BUSES 1017 4.2 [OM904.911] 01.1998-10.2004 MERCEDES BENZ TRUCKS & BUSES 1017 4.3 [OM904.911] 01.1998-10.2004 MERCEDES BENZ TRUCKS & BUSES 1023 6.4 [OM906.910][OM902.916][OM906.915] 01.1998- MERCEDES BENZ TRUCKS & BUSES 1024 6.4 [OM902.916][OM906.915] 10.2004- MERCEDES BENZ TRUCKS & BUSES 1214 4.3 [OM904.910][OM904.916] 01.1998-10.2004 MERCEDES BENZ TRUCKS & BUSES 1215 4.3 [OM900.912][OM904.922] 01.1998- MERCEDES BENZ TRUCKS & BUSES 1216 4.3 [OM900.912][OM904.922] 10.2004- MERCEDES BENZ TRUCKS & BUSES 1217 4.3 [OM904.911] 01.1998-10.2004 MERCEDES BENZ TRUCKS & BUSES 1223 6.4 [OM902.916][OM906.910][OM906.915] 01.1998- MERCEDES BENZ TRUCKS & BUSES 1224 6.4 [OM902.916][OM906.910][OM906.915] 10.2004- MERCEDES BENZ TRUCKS & BUSES 1225 6.4 [OM906.919] 01.1998-10.2004 MERCEDES BENZ TRUCKS & BUSES 1228 6.4 [OM906.911][OM906.916][OM902.918] 01.1998- MERCEDES BENZ TRUCKS & BUSES 1229 6.4 [OM906.911][OM906.916] 10.2004- MERCEDES BENZ TRUCKS & BUSES 1317 4.3 [OM904.911] 01.1998-10.2004 MERCEDES BENZ TRUCKS & BUSES 1323 6.4 [OM906.910][OM902.916][OM906.915] 01.1998- MERCEDES BENZ TRUCKS & BUSES 1324 6.4 [OM902.916][OM906.910][OM906.915] 10.2004- MERCEDES BENZ TRUCKS & BUSES 1325 6.4 [OM906.919] 01.1998-10.2004 MERCEDES BENZ TRUCKS & BUSES 1328 6.4 [OM906.911][OM906.916][OM902.918] 01.1998- MERCEDES BENZ TRUCKS & BUSES 1329 6.4 [OM906.911][OM906.916][OM902.918] 01.1998- MERCEDES BENZ TRUCKS & BUSES 1517 4.3 [OM904.911] 01.1998-10.2004 MERCEDES BENZ TRUCKS & BUSES 1523 6.4 [OM906.910][OM902.916][OM906.915] 01.1998- MERCEDES BENZ TRUCKS & BUSES 1524 6.4 [OM902.916][OM906.910][OM906.915] 10.2004- MERCEDES BENZ TRUCKS & BUSES 1525 6.4 [OM906.919] 01.1998-10.2004 MERCEDES BENZ TRUCKS & BUSES 1528 6.4 [OM906.911][OM906.916][OM902.918] 01.1998- MERCEDES BENZ TRUCKS & BUSES 1529 6.4 [OM906.911][OM906.916][OM902.918] 10.2004- MERCEDES BENZ TRUCKS & BUSES 1823 6.4 [OM906.920] 01.2002-10.2004 MERCEDES BENZ TRUCKS & BUSES 1823 6.4 [OM906.920][OM906.922] 01.1998-09.2004 MERCEDES BENZ TRUCKS & BUSES 1823 6.4 [OM906.940] 03.1998- MERCEDES BENZ TRUCKS & BUSES 1828 6.4 [OM906.921] 01.2002-08.2006 MERCEDES BENZ TRUCKS & BUSES 1828 6.4 [OM906.921][OM906.923] 05.1998-09.2004 MERCEDES BENZ TRUCKS & BUSES 1828 6.4 [OM906.941] 03.1998-03.2001 MERCEDES BENZ TRUCKS & BUSES 1829 6.4 [OM906.921] 01.2002-08.2006 MERCEDES BENZ TRUCKS & BUSES 1831 11.9 [OM541.920] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 1831 11.9 [OM541.926] 04.1997-10.2002 MERCEDES BENZ TRUCKS & BUSES 1832 11.9 [OM541.940] 04.2003- MERCEDES BENZ TRUCKS & BUSES 1835 11.9 [OM541.922][OM541.927] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 1836 11.9 [OM541.942] 04.2003- MERCEDES BENZ TRUCKS & BUSES 1840 11.9 [OM541.923][OM541.924] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 1841 11.9 [OM541.944] 04.2003- MERCEDES BENZ TRUCKS & BUSES 1843 11.9 [OM541.921][OM541.925] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 1844 11.9 [OM541.921][OM541.946] 04.2003- MERCEDES BENZ TRUCKS & BUSES 1848 15.9 [OM542.921][OM542.925] 04.1997-10.2002 MERCEDES BENZ TRUCKS & BUSES 1850 15.9 [OM542.940] 04.2003- MERCEDES BENZ TRUCKS & BUSES 1853 15.9 [OM542.920] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 1854 15.9 [OM542.942] 04.2003- MERCEDES BENZ TRUCKS & BUSES 1857 15.9 [OM542.922] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 1858 15.9 [OM542.944] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2031 11.9 [OM541.920][OM541.926] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2032 11.9 [OM541.920][OM541.926][OM541.940] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2035 11.9 [OM541.922] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2035 11.9 [OM541.927] 04.1997-10.2002 MERCEDES BENZ TRUCKS & BUSES 2036 11.9 [OM541.922][OM541.927][OM541.942][OM541.943] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2040 11.9 [OM541.923] 09.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2040 11.9 [OM541.924] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2041 11.9 [OM541.924][OM541.944] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2043 11.9 [OM541.925] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2044 11.9 [OM541.921][OM541.925][OM541.946] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2048 15.9 [OM542.925] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2050 15.9 [OM542.940][OM542.941] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2053 11.9 [OM542.920] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2523 6.4 [OM906.920] 05.1998-09.2004 MERCEDES BENZ TRUCKS & BUSES 2523 6.4 [OM906.920] 01.2002-10.2004 MERCEDES BENZ TRUCKS & BUSES 2528 6.4 [OM906.921] 05.1998-09.2004 MERCEDES BENZ TRUCKS & BUSES 2528 6.4 [OM906.921] 01.2002-10.2004 MERCEDES BENZ TRUCKS & BUSES 2531 11.9 [OM541.920][OM541.922][OM541.940][OM541.942] 09.1996-10.2002 3 MERCEDES BENZ TRUCKS & BUSES 2532 11.9 [OM541.920][OM541.940] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2535 11.9 [OM541.922] 09.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2536 11.9 [OM541.922][OM541.943][OM541.942] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2540 11.9 [OM541.923][OM541.944] 09.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2541 11.9 [OM541.944] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2543 11.9 [OM541.925][OM541.946] 09.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2544 11.9 [OM541.946] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2548 15.9 [OM542.921] 09.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2553 15.9 [OM542.920] 09.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2557 15.9 [OM542.922] 09.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2628 6.4 [OM906.921] 05.1998-09.2004 MERCEDES BENZ TRUCKS & BUSES 2628 6.4 [OM906.921] 01.2002-08.2006 MERCEDES BENZ TRUCKS & BUSES 2628 6.4 [OM906.941][OM906.952] 03.1998-03.2001 MERCEDES BENZ TRUCKS & BUSES 2631 11.9 [OM541.920] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2632 11.9 [OM541.940] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2635 11.9 [OM541.922] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2636 11.9 [OM541.942] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2640 11.9 [OM541.923] 04.1997-10.2002 MERCEDES BENZ TRUCKS & BUSES 2641 11.9 [OM541.944] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2643 11.9 [OM541.925] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2644 11.9 [OM541.946] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2648 15.9 [OM542.921] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2650 15.9 [OM542.940] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2653 15.9 [OM542.920] 04.1996-10.2002 MERCEDES BENZ TRUCKS & BUSES 2654 15.9 [OM542.942] 04.2003- MERCEDES BENZ TRUCKS & BUSES 2657 15.9 [OM542.922] 04.1997-10.2002 MERCEDES BENZ TRUCKS & BUSES 2658 15.9 [OM542.944] 04.2003- MERCEDES BENZ TRUCKS & BUSES 3231 11.9 [OM541.920][OM541.940] 04.1997- MERCEDES BENZ TRUCKS & BUSES 3232 11.9 [OM541.920][OM541.940] 04.2003- MERCEDES BENZ TRUCKS & BUSES 3235 11.9 [OM541.922][OM541.942] 04.1997-10.2002 MERCEDES BENZ TRUCKS & BUSES 3240 11.9 [OM541.923] 04.1997-10.2002 MERCEDES BENZ TRUCKS & BUSES 3241 11.9 [OM541.944] 04.2003- MERCEDES BENZ TRUCKS & BUSES 3243 11.9 [OM541.924][OM541.925] 04.1997-10.2002 MERCEDES BENZ TRUCKS & BUSES 3331 11.9 [OM541.920][OM541.940][OM541.970][OM541.926] 04.1997- MERCEDES BENZ TRUCKS & BUSES 3332 11.9 [OM541.920][OM541.940][OM541.970] 04.2003- MERCEDES BENZ TRUCKS & BUSES 3335 11.9 [OM541.922] 04.1997-10.2002 MERCEDES BENZ TRUCKS & BUSES 3336 11.9 [OM541.942] 04.2003- MERCEDES BENZ TRUCKS & BUSES 3340 11.9 [OM541.923][OM541.924] 04.1997-10.2002 MERCEDES BENZ TRUCKS & BUSES 3341 11.9 [OM541.923][OM541.944] 04.2003- MERCEDES BENZ TRUCKS & BUSES 3343 11.9 [OM541.921][OM541.925] 04.1997-10.2002 MERCEDES BENZ TRUCKS & BUSES 3344 11.9 [OM541.946][OM541.947] 04.2003- MERCEDES BENZ TRUCKS & BUSES 3346 11.9 [OM541.948] 04.2003- MERCEDES BENZ TRUCKS & BUSES 3348 15.9 [OM542.921][OM542.925] 04.1997- MERCEDES BENZ TRUCKS & BUSES 3350 15.9 [OM542.940] 04.2003- MERCEDES BENZ TRUCKS & BUSES 3351 15.9 [OM542.940] 04.2003- MERCEDES BENZ TRUCKS & BUSES 3353 15.9 [OM542.920] 04.1997-10.2002 MERCEDES BENZ TRUCKS & BUSES 3354 15.9 [OM542.942][OM542.962] 04.2003- MERCEDES BENZ TRUCKS



Product Image


24V 100A  MERCEDES BENZ TRUCKS & BUSES  Alternator electrical generator Lester 12388 0091549902 0101540002 0101548902 0







Company introduction:


 Yute Motor(Guangdong) Mechanical parts Co., Ltd., established in 2008, focus on the production of Motor Starters and Alternators. With more than 20,000 square meters of wide production workshop parts and equipped with a number of advanced equipment such as high-precision CNC machining centers and CNC lathes, automatic rotor spot welding machines, CNC milling machines, on-site foaming machines, modern automatic production lines, and automatic insulation treatment producers, the company’s annual output value reaches more than 200,000 units. After 14 years unremitting efforts, the company has become a pioneer in the construction machinery industry, and our products have successively passed the certifications of IS09001:2000, QS-9000, and ISO/TS16949. Up to now, the motor series produced by Yute has reached the international advanced level. Besides, the motor sales volume of construction machinery, such as excavators and heavy trucks are in the lead all the year round.
24V 100A  MERCEDES BENZ TRUCKS & BUSES  Alternator electrical generator Lester 12388 0091549902 0101540002 0101548902 1
24V 100A  MERCEDES BENZ TRUCKS & BUSES  Alternator electrical generator Lester 12388 0091549902 0101540002 0101548902 2
24V 100A  MERCEDES BENZ TRUCKS & BUSES  Alternator electrical generator Lester 12388 0091549902 0101540002 0101548902 324V 100A  MERCEDES BENZ TRUCKS & BUSES  Alternator electrical generator Lester 12388 0091549902 0101540002 0101548902 4
24V 100A  MERCEDES BENZ TRUCKS & BUSES  Alternator electrical generator Lester 12388 0091549902 0101540002 0101548902 524V 100A  MERCEDES BENZ TRUCKS & BUSES  Alternator electrical generator Lester 12388 0091549902 0101540002 0101548902 6
24V 100A  MERCEDES BENZ TRUCKS & BUSES  Alternator electrical generator Lester 12388 0091549902 0101540002 0101548902 724V 100A  MERCEDES BENZ TRUCKS & BUSES  Alternator electrical generator Lester 12388 0091549902 0101540002 0101548902 8
24V 100A  MERCEDES BENZ TRUCKS & BUSES  Alternator electrical generator Lester 12388 0091549902 0101540002 0101548902 9
